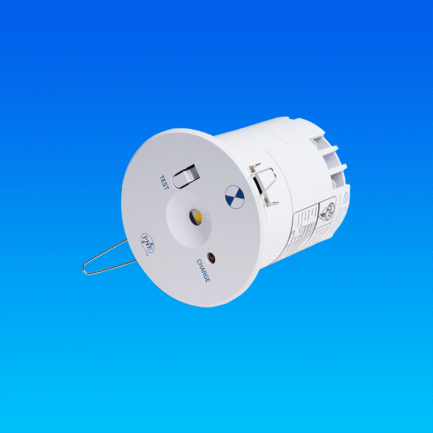

PTH-322R
Specifications
Model | PTH 322R |
Light Source | 3W COB Power LED |
Mode | Non-maintained |
Weight | ~410 gram |
Battery | 4.8 V, 1.7 AH / 1.8AH Ni-Cad Battery |
Housing | PC + ABS +UV Plastic Fire Retardant |
Charger | Constant Current |

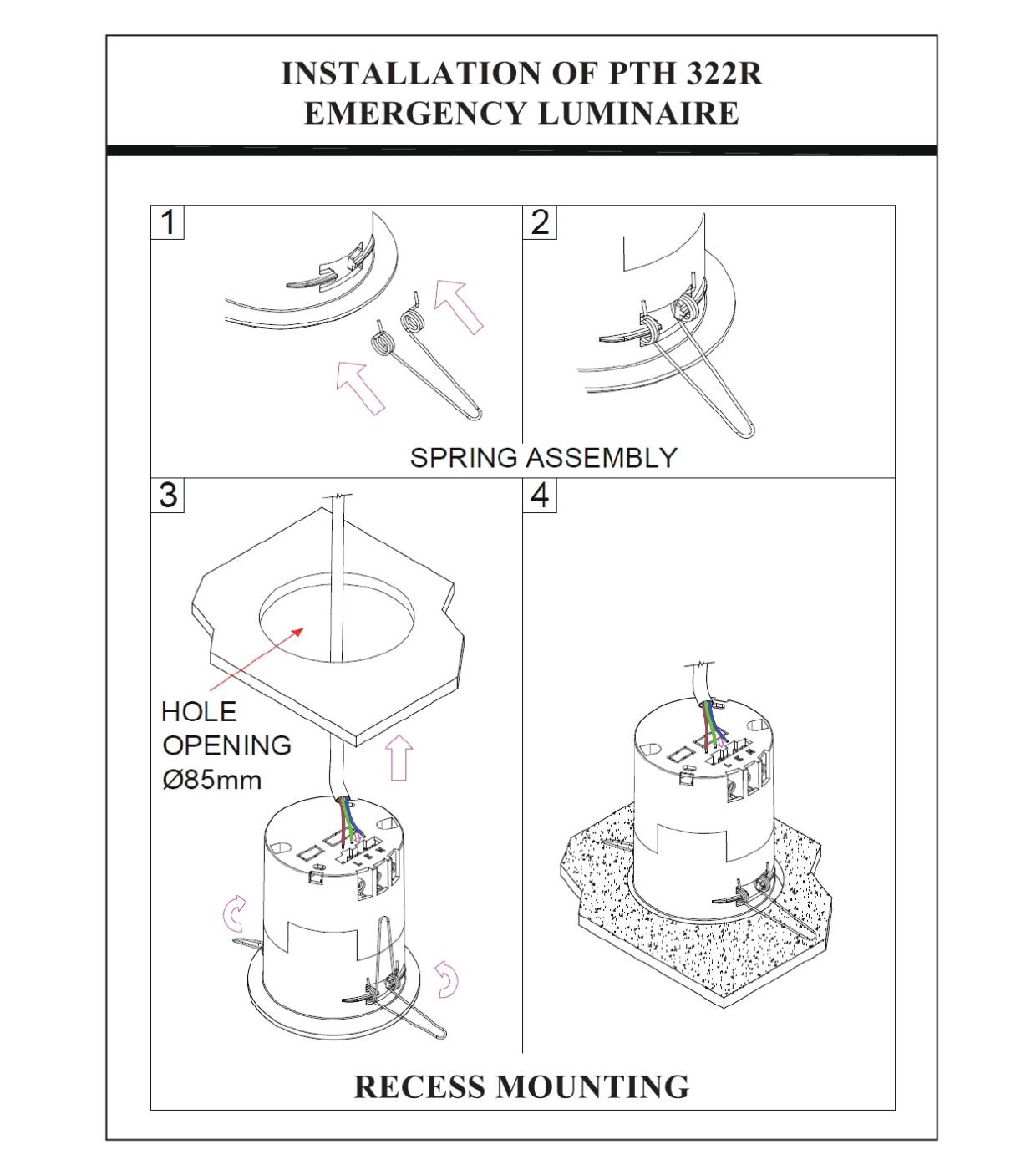

Mounting | Ceiling recess mount |
Dimension | Fitting: 98mm (H) x 95mm (ø) |
Monitoring | Red LED indicating healthy supply and charging.
Equipped with momentary switch to simulate power failure |
Compliance | SIRIM MS 619-2-22: 2005. MS IEC 60598-1:2012
Jabatan Bomba dan Penyelamat Malaysia certified |
Input Voltage | 240V +/- 10% 50/60 Hz |
Input Power | 2.5W |
Recharge Period | 16-24 hours |
Back-up Duration | 3 hours |
Battery Protection | Low voltage cut-off to prevent over discharging |
Degree of Protection | IP-20 |
Operating Temperature | 0 ° C to 65 ° C |
Ambient Temperature | 40 ° C |
Rated Lumen Output | 192 lm to 228 lm. |
